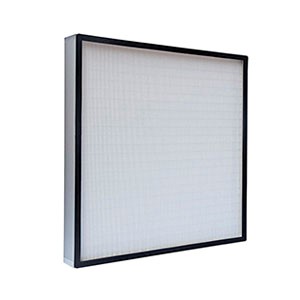

PTFE Mini Pleat Filters

PTFE Mini-pleat Filter is a ULPA type of filter, designed for hostile environments, chemical processing, pharmaceuticals and other clean process applications available in efficiencies of 99.99995% at most penetrating particle size (MPPS). This product is ideal for corrosive gas environments because, unlike conventional glass fiber media, no boron is generated by hydrofluoric acid reacting with the filter components.

Suitable and beneficial for the high clean level area like super Clean Room or sterile room in Semi-conductor factories, Electric & Electronics plants, hospitals.

PTFE Mini-pleat Filter

Efficiency: H13 / H14 / U15 / U16 / U17

Media: PTFE (polytetrafluoroethylene) filter paper

Frame: Aluminum / GI / SUS / MDF

Sealant: Pu two-component polyurethane glue

Gasket: Pu endless gasket / EVA / EPDM

Separator: Hot melt bead

Optional thickness: 38 ~ 100mm

Max Temperature: 70℃

Max Humidity: 100%
